Application Launch Process

User taps icon
↓
Launcher sends intent
↓
ActivityManagerService receives request
↓
Zygote forks a new process
↓
App process starts
↓
ActivityThread created
↓
Main Activity launched

1. User clicks app icon

User taps the icon in the launcher (for example Launcher3).

The icon click event gets translated into startActivity(intent) and it is routed to ActivityManagerService via Binder IPC.

2. ActivityManagerService Checks Process

Is the app process already running?
- If yes → reuse the process
- If not → create a new process

Now the system needs a Linux process.

But Android does something clever here.

Instead of calling fork() directly from system_server, it asks Zygote.

3. AMS Requests Zygote to Fork

ActivityManagerService sends a command to Zygote via Zygote socket.

4. Zygote forks the process

Now two processes exist:
- Parent → Zygote
- Child → New App Process

The child process then runs:

ActivityThread.main()

5. ActivityThread starts

Inside the new app process:

ActivityThread.main()

does:

Prepare main thread

Looper.prepareMainLooper()

Create ActivityThread instance

ActivityThread thread = new ActivityThread();

thread.attach(false)

7. System Server Sends `bindApplication()`

Now ActivityManagerService sends a message to the app process:

bindApplication()

This call contains:
- ApplicationInfo
- Loaded APK path
- Target SDK
- Instrumentation info

This is received in:

ActivityThread.handleBindApplication()

8. Application Object Creation

Inside handleBindApplication():

Android creates the Application instance.

Steps:
- Create LoadedApk
- Setup ClassLoader
- Load app classes
- Create Application object
  Application app = mInstrumentation.newApplication(...)

This method invokes makeApplication() method which loads app specific classes into memory.

9. Launch Activity

Now AMS instructs the app to start the Activity.

Binder message:

scheduleLaunchActivity()

Received in:

ActivityThread.handleLaunchActivity()

Steps:
- Create Activity instance
- Attach context
- Call lifecycle
  onCreate() onStart() onResume()

Finally the Activity becomes visible.

What is ActivityThread

ActivityThread is not a thread. It’s just a Java class that runs on the main thread of your app process.

The real thread is the main/UI thread, created when your app process starts.

Inside that thread:
- Android calls ActivityThread.main()
- That sets up a Looper
- Then starts processing messages (like launching activities, services, etc.)

So:

Main Thread (real thread)
└── ActivityThread (just a class running on it)

What does ActivityThread do?

Think of it as the central controller of your app process:
- Launches Activities
- Handles lifecycle callbacks
- Talks to system_server via Binder (AMS, etc.)
- Dispatches events using a Handler

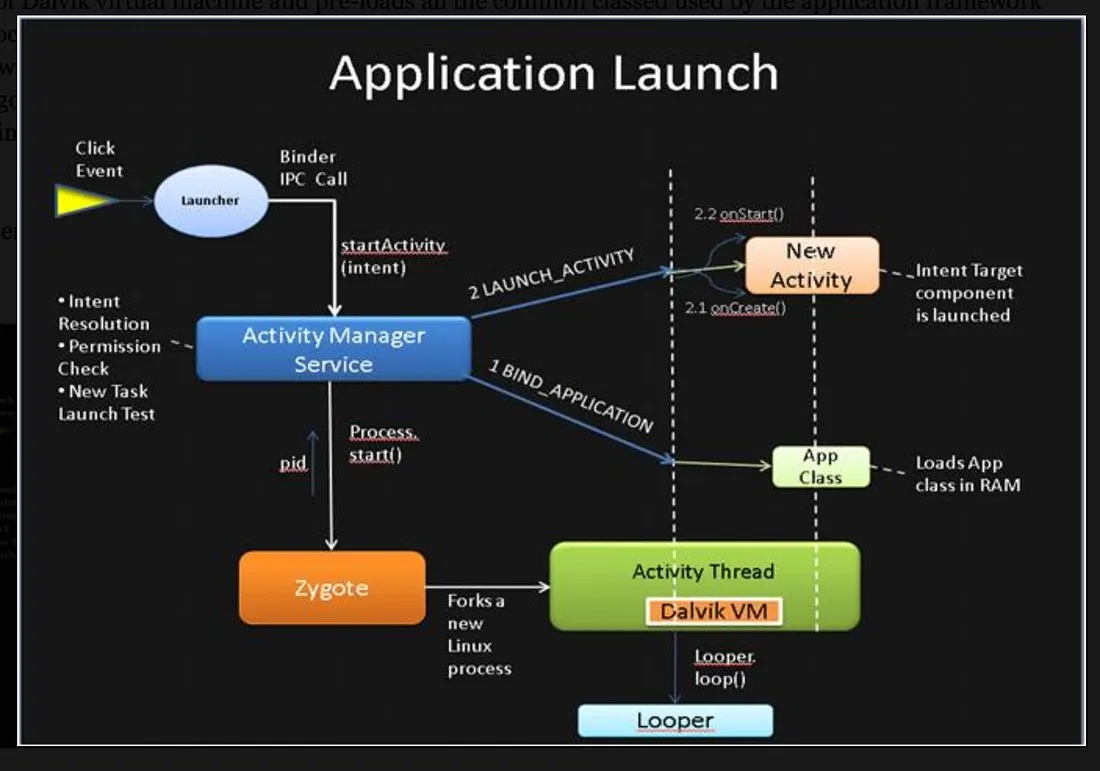

Summary

User taps app icon
      ↓
Launcher sends Intent
      ↓
Binder IPC
      ↓
ActivityTaskManagerService
      ↓
ActivityManagerService checks process
      ↓
Process not running
      ↓
AMS requests Zygote
      ↓
Zygote fork()
      ↓
New App Process created
      ↓
RuntimeInit → ActivityThread.main()
      ↓
App registers with AMS
      ↓
bindApplication()
      ↓
Application.onCreate()
      ↓
scheduleLaunchActivity()
      ↓
Activity lifecycle starts
